Screening: machines designed and built in-house.

Compare models of this typeInclined vibrating screens6 models · compare two to four, even from different seriesOpen the comparisonCompare models of this typeVibrating dewatering screens2 models · compare two to four, even from different seriesOpen the comparison

Products

Inclined vibrating scalping screen LA-VVS-31251-OR03

LA-VVS-31251-OR03

INCLINED VIBRATING SCALPING SCREEN

Open-design inclined vibrating scalping screen for quarry and river aggregates, with single-deck screening into 2 fractions.

MAXIMUM FEED SIZE
120 mm
FEED CAPACITY
40–⁠100 t/h
INSTALLED POWER
7.5 kW
SCREEN WEIGHT
1,500 kg
Inclined vibrating scalping screen LA-VVS-4151-OR05

LA-VVS-4151-OR05

INCLINED VIBRATING SCALPING SCREEN

Open-design inclined vibrating scalping screen for quarry and river aggregates, with single-deck screening into 2 fractions.

MAXIMUM FEED SIZE
120 mm
FEED CAPACITY
40–⁠150 t/h
INSTALLED POWER
7.5 kW
SCREEN WEIGHT
1,500 kg

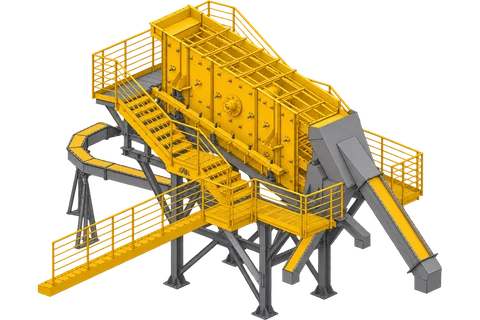

Heavy-duty inclined vibrating screen LA-VVP-4153-OR06

LA-VVP-4153-OR06

HEAVY-DUTY INCLINED VIBRATING SCREEN

Open-design heavy-duty inclined vibrating screen for alluvial aggregates, with three-deck screening into 4 fractions.

MAXIMUM FEED SIZE
120 mm
FEED CAPACITY
20–⁠50 t/h
INSTALLED POWER
15 kW
SCREEN WEIGHT
3,650 kg

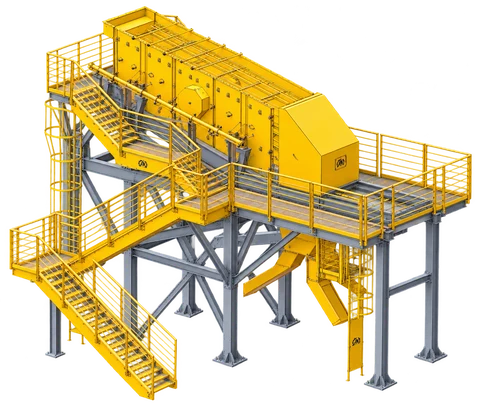

Heavy-duty inclined vibrating screen LA-VVP-5153-OR07

LA-VVP-5153-OR07

HEAVY-DUTY INCLINED VIBRATING SCREEN

Open-design heavy-duty inclined vibrating screen for alluvial aggregates, with three-deck screening into 4 fractions.

MAXIMUM FEED SIZE
120 mm
FEED CAPACITY
60–⁠160 t/h
INSTALLED POWER
22 kW
SCREEN WEIGHT
5,000 kg
Heavy-duty inclined vibrating screen LA-VVP-5154-OR08

LA-VVP-5154-OR08

HEAVY-DUTY INCLINED VIBRATING SCREEN

Open-design heavy-duty inclined vibrating screen for alluvial aggregates, with four-deck screening into 5 fractions, complete with a dedicated Abronzino LA-IV-515 support structure.

FEED CAPACITY
160 t/h
INSTALLED POWER
22 kW
SCREEN WEIGHT
6,300 kg
SUPPORT FRAME WEIGHT
7,850 kg
Heavy-duty inclined vibrating screen LA-VVP-6183-OR09

LA-VVP-6183-OR09

HEAVY-DUTY INCLINED VIBRATING SCREEN

Open-design heavy-duty inclined vibrating screen for river and quarry aggregates, with three-deck screening into 4 fractions.

MAXIMUM FEED SIZE
120 mm
FEED CAPACITY
100–⁠200 t/h
INSTALLED POWER
30 kW
SCREEN WEIGHT
6,550 kg
Vibrating dewatering screen LA-VA-15/10

LA-VA-15/10

VIBRATING DEWATERING SCREEN

Used mainly to separate solids from liquids, the screen is installed horizontally.

OUTPUT
30 t/h
SCREENING DECK
1,500 × 1,000 mm
TOTAL WEIGHT
1,100 kg
INSTALLED POWER
1.6+1.6 kW
Vibrating dewatering screen LA-VA-24/15

LA-VA-24/15

VIBRATING DEWATERING SCREEN

Used mainly to separate solids from liquids, the screen is installed horizontally.

SCREENING DECK
2,400 × 1,500 mm
MAXIMUM FEED SIZE
0–⁠30 mm
TOTAL WEIGHT
2,500 kg
INSTALLED POWER
7 kW
