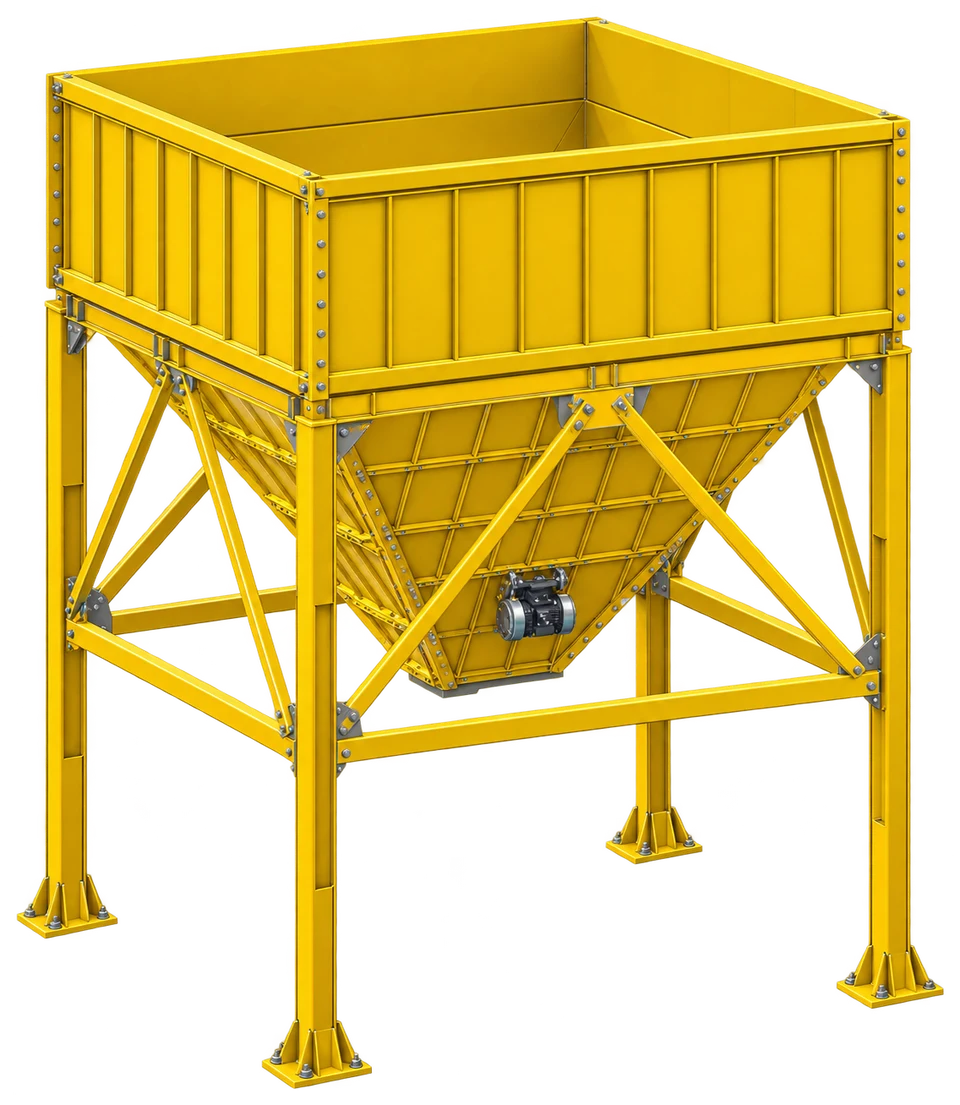

FEED HOPPER
Feed hopper for holding aggregate, with a bottom outlet ready to take the feeder. It is built from 6/8 mm plate, reinforced externally with flat bars and UPN channels, on HEA ground supports; the top is prepared for the LA-GCTCP-40-35 comb-type grizzly and the LA-GC-120-290 grizzly. It is fully bolted for easier transport and assembly.
- VOLUMETRIC CAPACITY
- 40 m³
- HOPPER WEIGHT
- 7,500 kg
- BOTTOM DISCHARGE OPENING
- 800 × 800 mm
- OVERALL HEIGHT
- 6,220 mm
