Abronzino · Aggregate feeding and storage
LA-GCTCP-40-35

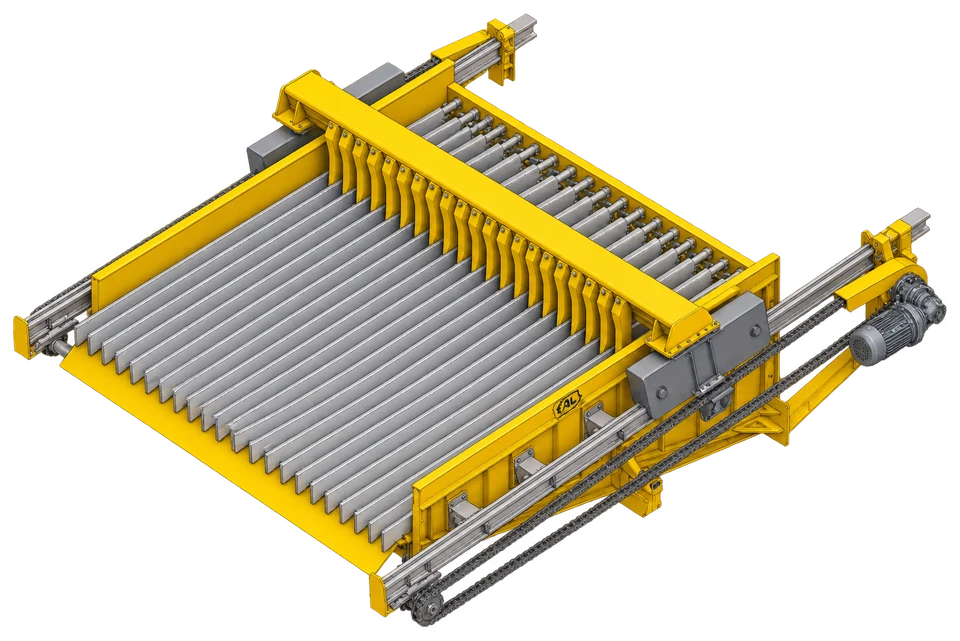

GRIZZLY WITH COMB-TYPE OVERHEAD CRANE
Hopper grizzly with variable opening (on request) for Abronzino LA-TCC-40 and LA-TCD-40 hoppers, complete with a base frame and a comb gantry, with chain drive and planetary gearmotor, for clearing jammed stones. The grizzly is built from individual removable rails of 150 × 15 mm flat bar and Ø 50 mm round bar.
- SIZE
- 4,000 × 3,500 mm
- GRIZZLY OPENING
- 250÷120 mm
- WEIGHT
- 8,900 kg
- INSTALLED POWER
- 7.5 kW
Request informationThe form opens with the product already filled in.
