Abronzino · Aggregate feeding and storage
LA-AV-600

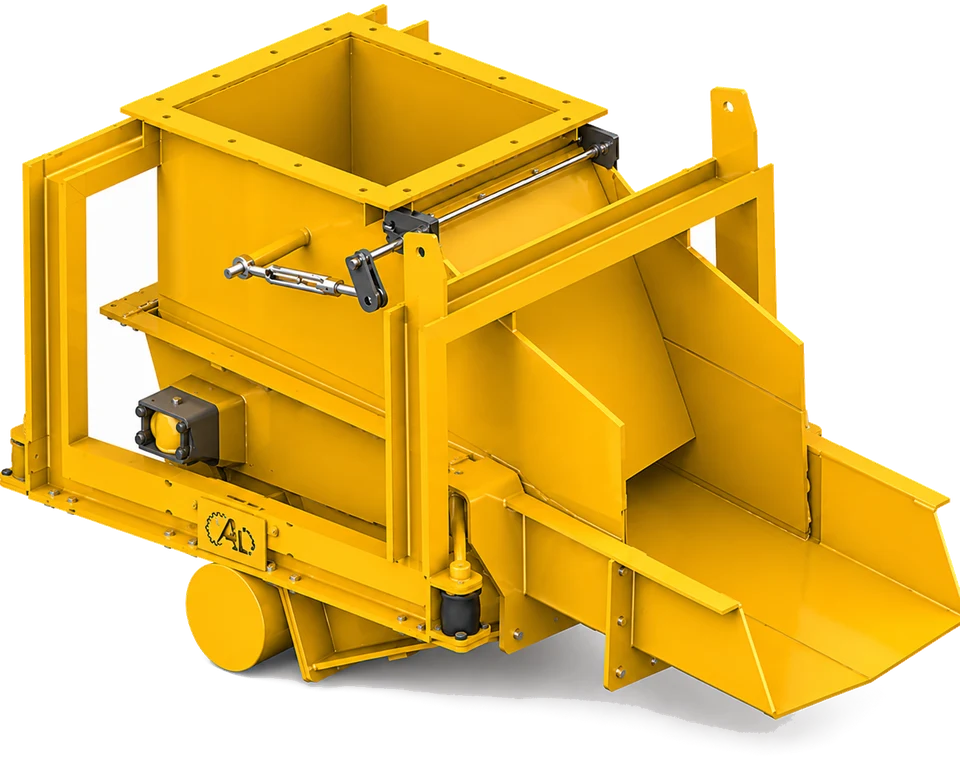

VIBRATING PAN FEEDER
The vibrating feeder draws material from hoppers and from tunnels beneath stockpiles and meters it continuously to the next machine. A vibrating pan, driven by vibrating motors with adjustable eccentric weights, is connected to the fixed section by rubber springs. Capacity is easy to adjust and maintenance is minimal.
- HOURLY CAPACITY
- 40–100 m³/h
- STARTING POWER
- 2 kW
- PAN SIZE
- 1,500 × 600 mm
- MACHINE WEIGHT
- 580 kg
